Courtyards and parks are experienced at close range. People notice the luminaire, the pole, the quality of a view and the relationship between lit and unlit areas. A decorative head can support the daytime architecture, but its night-time role must also be carefully defined. A Keira Ellips courtyard lighting brief should begin with how the space is used, not with a regular grid of poles.

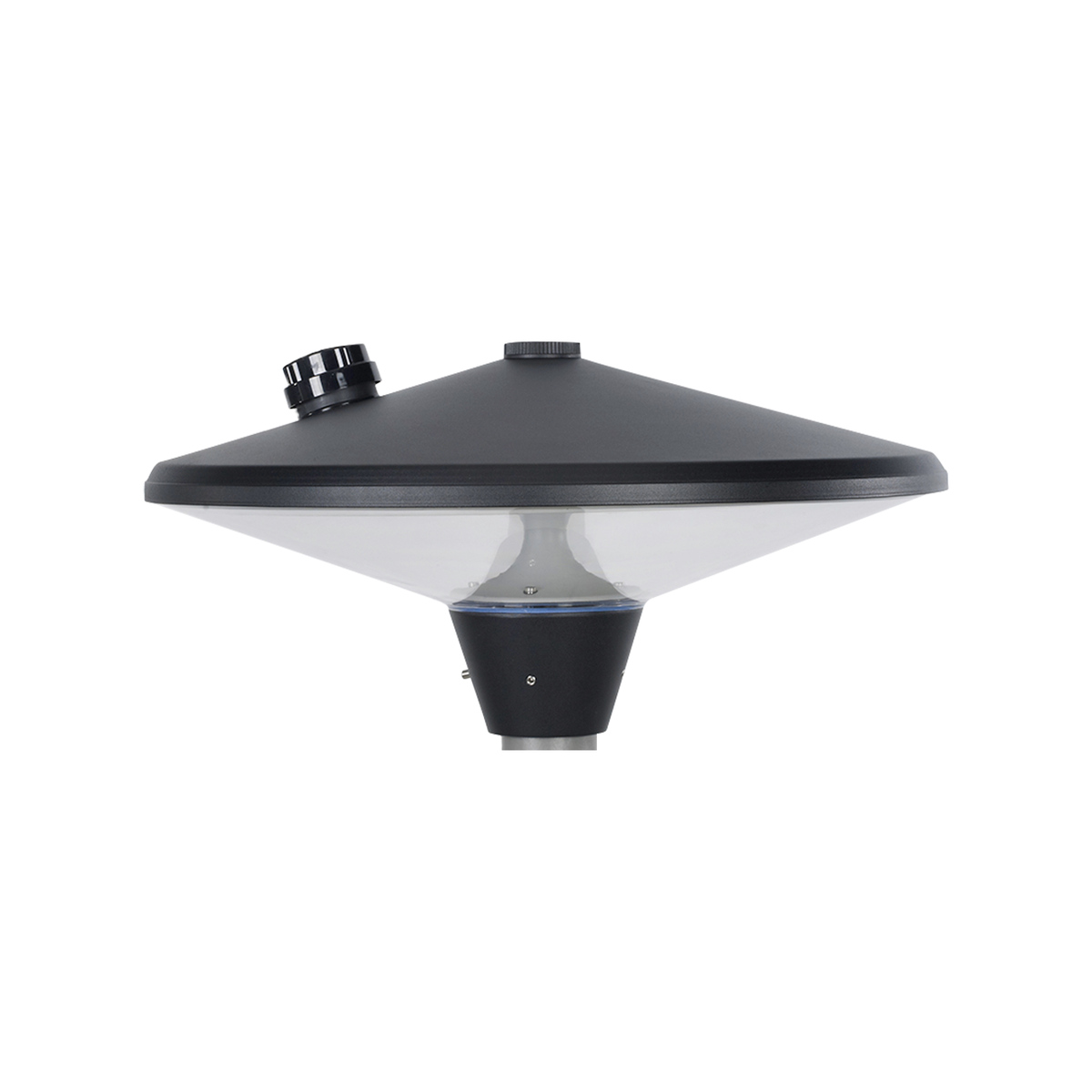

Keira Ellips is an elliptical post-top reference in the LUXiFiC portfolio. The design notes identify a die-cast aluminum head, a sealed enclosure and a top-pole mounting socket. Parks, plazas, courtyards and residential landscape walkways are named application starting points. Suitability for an individual site still depends on the selected installation and optical configuration.
Map movement and the places people pause
Separate the main walking route from seating, entrances, steps, planting and service access. These do not necessarily need identical lighting treatment. Mark where users arrive from brighter surroundings and where they look toward the next part of the route. The resulting plan gives the lighting designer a better brief than a single target applied without context.
Consider the unlit daytime composition as well. The head and pole become part of the landscape furniture. Review their proportions alongside trees, paving and nearby architecture using the selected model's dimensional information. A product thumbnail cannot establish how prominent the installation will feel in a small courtyard.
Control where the light goes
Ask the designer to review the selected optical distribution from the actual installation height. Include nearby residential windows, adjoining gardens and other sensitive edges in the brief. A scheme that looks balanced on a plan may need adjustment when checked from a seat, a path entrance or an upper-floor window.
DarkSky and the Illuminating Engineering Society describe responsible outdoor lighting through five principles: useful, targeted, low level, controlled and warm-colored. Those principles provide a helpful design framework, not a certification for a particular Keira configuration. Establish the site's needs and request evidence for the selected luminaire rather than labeling the whole family as compliant.
Read the Keira Ellips reference correctly
The available model sheet lists 10-20 W, 20-40 W and 40-100 W configurations. Treat these as documented selection bands. The appropriate version depends on the task, optics, installation and project criteria; the largest listed band is not automatically the most suitable choice for a small pedestrian environment.
The reference also lists die-cast aluminum and PC construction, IP66 and IK09, plus several control options. Confirm the exact supplied version, finish, pole connection and control arrangement. Family or model options should not be interpreted as a statement that every feature is included as standard.
Evaluate Keira and Keira Ellips as distinct references
A shared family name can help create a shortlist, but it should not obscure the actual head form. Compare the selected Keira and Keira Ellips product images with their drawings. Do not carry the Ellips model's documented power bands into another Keira configuration without model-specific confirmation.
If the scheme uses more than one form, agree which visual elements should remain consistent and which differences are intentional. Record the finish and mounting requirements in the schedule so that the design intent survives the quotation and approval stages.
A useful courtyard lighting brief
- A site plan showing main routes, entrances, seating and changes of level.
- Views toward neighboring windows and the sensitive boundaries to consider.
- Proposed pole locations, mounting heights and connection details.
- The intended color-temperature and control strategy, subject to configuration confirmation.
- The exact photometric files and dimensional drawings required for review.
Can decorative appearance guarantee comfortable light?
No. Visual comfort depends on the selected configuration and its installation. Review the optical information and, where the project warrants it, a representative mock-up from the viewpoints people will actually use.
For Keira Ellips courtyard lighting, submit the landscape plan and key views to LUXiFiC. A focused enquiry can then connect the product's decorative form with a specific mounting, optical and operating brief.
