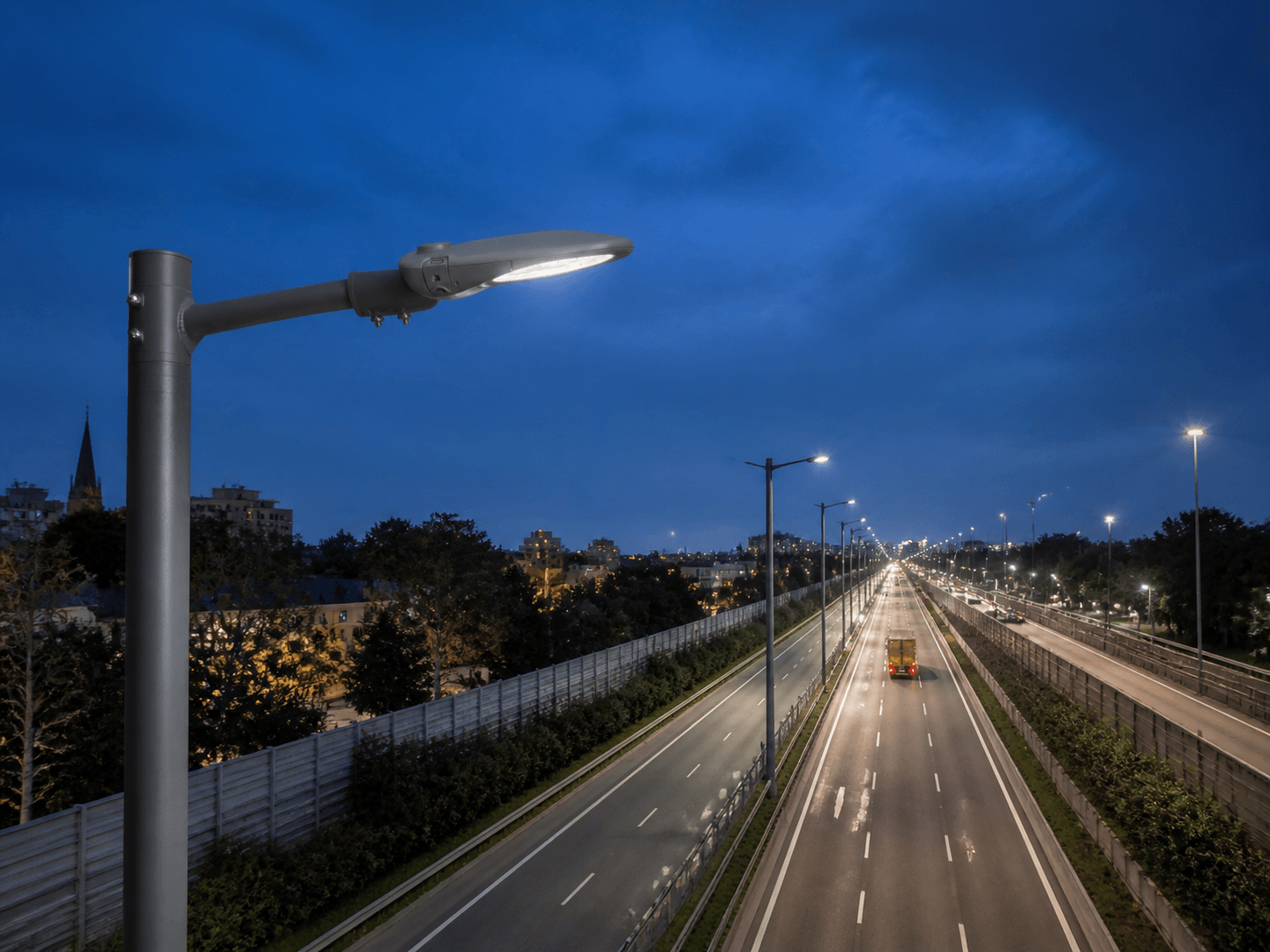

Roads & Motorways

Compare road-lighting families by the selected model and its installation requirements, rather than by appearance alone.

Explore this family Start a project brief

Product familyRoads & Motorways

Products available7

Technical files and performance vary by selected configuration.Technical files

A practical starting point

Products in this family

Use the product detail pages to review the available application context, product information, and next-step enquiry path.

Roads & Motorways

7 published products

View all products

Roads & Motorways

Pisces-3

The larger Pisces reference for roadway specification Pisces-3 is the larger luminaire in the documented Pisces family. The series sheet identifies PISCES3 configurations from 100-150 W through 180-250 W, depending on the selected LED arrangement. Its size and configuration range should be evaluated together with the required optics and mounting plan. Use the exact model selection when requesting dimensional information, photometric files and project pricing, rather than transferring a smaller Pisces model's specification. Design and installation PISCES3 is explicitly identified in the series sheet. Listed power configurations: 100-150 W, 150-180 W and 180-250 W. Die-cast aluminum construction in the series body reference. IP66 and configuration-dependent controls and impact protection. Application routes Road and motorway lighting briefs Urban road layouts described in the series notes Projects requiring comparison with the smaller Pisces-1 and Pisces-2 configurations Configuration reference The following values are listed in the supplied model or family reference. Options are not all included as standard; confirm the selected configuration. Body: Die-Cast Aluminum Electric: Quick on/off connector Color temperature options: 2200-6500 K Ambient temperature: -40 to +55 deg C Control options: DALI, 0-10V, Astro Dim, Step Dim IP Rating: IP66 IK Rating: IK09/IK10 Surge-protection options: 10kV, 10kA Accessory/interface options: Photocell, NEMA Socket, Zhaga Technical pack and project quotation To specify Pisces-3, request the model-specific dimensional drawing, selected optical data and electrical configuration. Share the application, mounting height and interface, quantity, control requirements and destination market with your enquiry. Final power, optics, finish, accessories and commercial terms are confirmed for the selected configuration. Certification documents, where required, should be requested for the exact product and market. A larger Pisces road luminaire for roadway applications requiring model-specific optical and power selection.

View luminaire

Roads & Motorways

Pisces-1

The compact Pisces road-lighting configuration Pisces-1 is the compact model in the Pisces road-lighting reference. The series sheet identifies PISCES1 and lists a die-cast aluminum body, quick on/off connector and configurable outdoor lighting controls. The compact form gives the specification team a smaller starting point within the family. Confirm the selected LED configuration, optical distribution and pole interface against the actual site; compare it with Pisces-2 and Pisces-3 when moving between installation scales. Design and installation PISCES1 is explicitly identified in the series sheet. Listed power configurations: 8-30 W, 20-50 W and 40-60 W. Die-cast aluminum body and quick on/off connector. IP66 with configuration-dependent IK09 / IK10 options in the series reference. Application routes Roads and motorway environments Urban streets and residential areas described in the series notes Parking, cycling and pedestrian environments for project-specific review Configuration reference The following values are listed in the supplied model or family reference. Options are not all included as standard; confirm the selected configuration. Body: Die-Cast Aluminum Electric: Quick on/off connector Color temperature options: 2200-6500 K Ambient temperature: -40 to +55 deg C Control options: DALI, 0-10V, Astro Dim, Step Dim IP Rating: IP66 IK Rating: IK09/IK10 Surge-protection options: 10kV, 10kA Accessory/interface options: Photocell, NEMA Socket, Zhaga Technical pack and project quotation To specify Pisces-1, request the model-specific dimensional drawing, selected optical data and electrical configuration. Share the application, mounting height and interface, quantity, control requirements and destination market with your enquiry. Final power, optics, finish, accessories and commercial terms are confirmed for the selected configuration. Certification documents, where required, should be requested for the exact product and market. A compact Pisces road luminaire with a die-cast aluminum body and configurable optics and controls.

View luminaire

Roads & Motorways

Vega 1

The compact starting point in the Vega road-lighting family Vega 1 is the smaller road-lighting reference in the Vega family, with a die-cast aluminum body and a conventional road-luminaire form. The series sheet identifies VEGA1 configurations ranging from 8-17 W through 60-80 W, with the appropriate choice depending on the selected LED and optical arrangement. Use the exact configuration to compare installation requirements and controls; do not treat the whole family as one fixed specification. Design and installation VEGA1 is explicitly identified in the Vega series sheet. Listed power configurations: 8-17 W, 20-30 W, 40-60 W and 60-80 W. Die-cast aluminum body with a quick on/off connector in the series reference. DALI, 0-10V, Astro Dim and Step Dim control options are listed. Application routes Road and motorway lighting briefs Urban and residential street layouts Airport and port environments listed in the application portfolio, subject to exact site review Configuration reference The following values are listed in the supplied model or family reference. Options are not all included as standard; confirm the selected configuration. Body: Die-Cast Aluminum Electric: Quick on/off connector Color temperature options: 2200-6500 K Ambient temperature: -40 to +55 deg C Control options: DALI, 0-10V, Astro Dim, Step Dim IP Rating: IP66 IK Rating: IK09/IK10 Surge-protection options: 10kV, 10kA Accessory/interface options: Photocell, NEMA Socket, Zhaga Technical pack and project quotation To specify Vega 1, request the model-specific dimensional drawing, selected optical data and electrical configuration. Share the application, mounting height and interface, quantity, control requirements and destination market with your enquiry. Final power, optics, finish, accessories and commercial terms are confirmed for the selected configuration. Certification documents, where required, should be requested for the exact product and market. A compact Vega road-lighting luminaire with a die-cast aluminum body and configurable outdoor lighting controls.

View luminaire

Roads & Motorways

SPM-L

The road-mount form of the SPM family SPM-L is the conventional road-lighting mounting option in the SPM family. Its rounded head and projecting road-mount interface provide a clear product form for an initial selection conversation. The family is included in the road and motorway application route. Use the actual installation plan to confirm the mounting connection, selected optics and electrical configuration. Request the SPM-L-specific dimensional drawing and technical pack to support the final product selection and quotation. Design and installation Conventional road-lighting mounting option listed for SPM-L. Rounded product head with a projecting mounting interface. Road and motorway application route in the reference. Model-specific technical pack required to confirm configuration and installation details. Application routes Road and motorway environments in the application portfolio Other installations only after model-specific supplier review Technical pack and project quotation To specify SPM-L, request the model-specific dimensional drawing, selected optical data and electrical configuration. Share the application, mounting height and interface, quantity, control requirements and destination market with your enquiry. Final power, optics, finish, accessories and commercial terms are confirmed for the selected configuration. Certification documents, where required, should be requested for the exact product and market. The conventional road-lighting mounting option in the SPM outdoor luminaire family.

View luminaire

Roads & Motorways

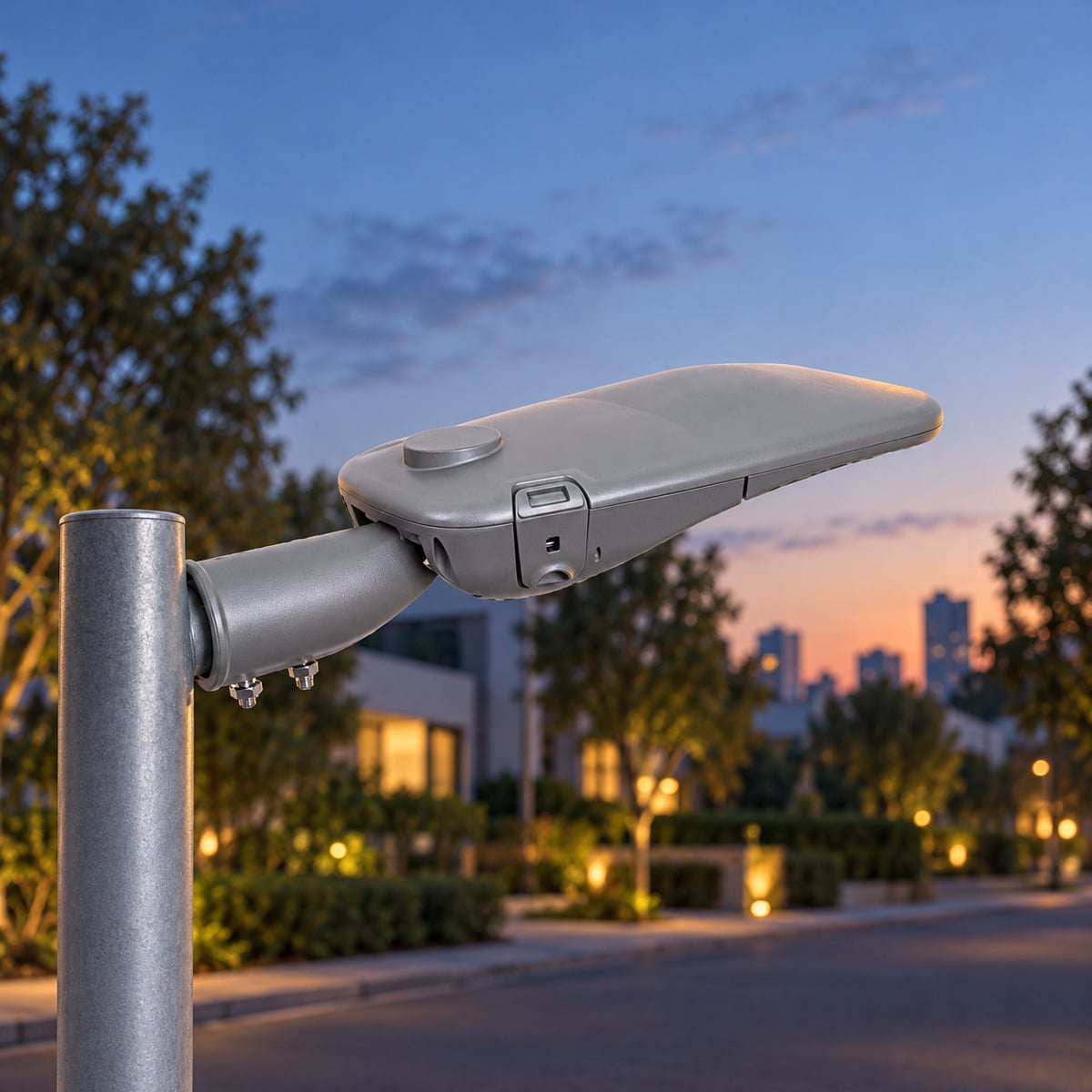

Pisces-2

The middle-size option in the Pisces roadway family Pisces-2 sits between the compact Pisces-1 and larger Pisces-3 references. The series sheet explicitly identifies PISCES2 and provides several LED and power configurations rather than one fixed output. Its conventional road-lighting form and die-cast aluminum construction support a model-specific comparison of mounting details, controls and optical requirements. Select the exact configuration for the street layout and request the corresponding dimensional and photometric files. Design and installation PISCES2 is explicitly identified in the series sheet. Listed power configurations: 30-40 W, 40-100 W and 70-150 W. Die-cast aluminum body with a quick on/off connector. DALI, 0-10V, Astro Dim and Step Dim options in the series control reference. Application routes Roadways and motorway environments Urban and residential street layouts Parking, cycling and pedestrian environments for project-specific review Configuration reference The following values are listed in the supplied model or family reference. Options are not all included as standard; confirm the selected configuration. Body: Die-Cast Aluminum Electric: Quick on/off connector Color temperature options: 2200-6500 K Ambient temperature: -40 to +55 deg C Control options: DALI, 0-10V, Astro Dim, Step Dim IP Rating: IP66 IK Rating: IK09/IK10 Surge-protection options: 10kV, 10kA Accessory/interface options: Photocell, NEMA Socket, Zhaga Technical pack and project quotation To specify Pisces-2, request the model-specific dimensional drawing, selected optical data and electrical configuration. Share the application, mounting height and interface, quantity, control requirements and destination market with your enquiry. Final power, optics, finish, accessories and commercial terms are confirmed for the selected configuration. Certification documents, where required, should be requested for the exact product and market. A mid-size Pisces road luminaire for roadways, urban streets and residential lighting applications.

View luminaire

Roads & Motorways

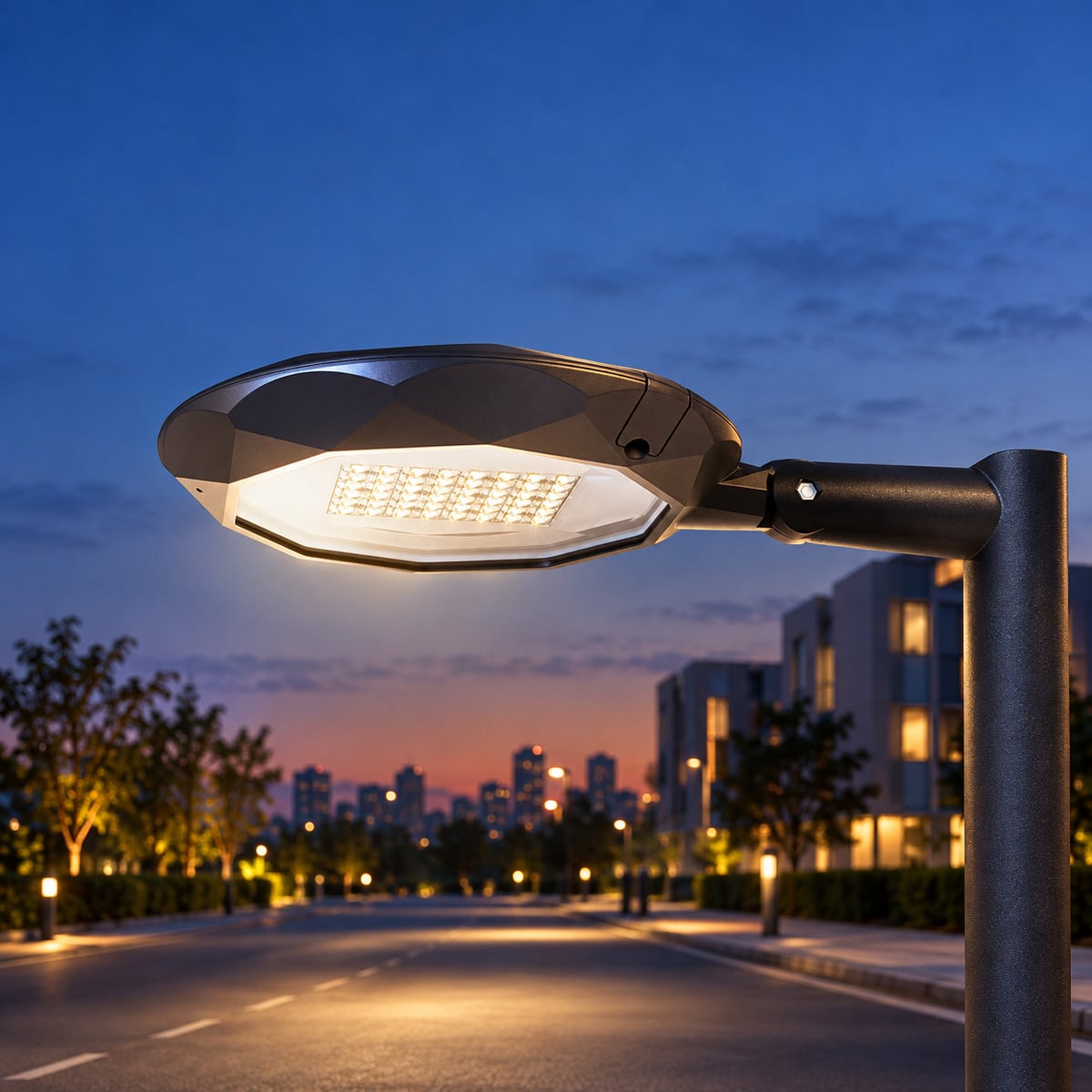

Mantis-L

The conventional road-mount option in the Mantis family Mantis-L connects the Mantis disc-form light engine to a conventional road-luminaire mounting arrangement. It provides an alternative to the hanging and arm-mounted members of the family when the installation calls for a more direct road-lighting form. The Mantis-L sheet identifies die-cast aluminum and glass construction, IP66 / IK09 protection and multiple optical options. Select the mounting interface and exact light distribution around the project layout. Design and installation Conventional road-lighting mounting form in the Mantis family. Die-cast aluminum and glass body construction. IP66 / IK09 protection in the Mantis-L reference. Mantis-L power configurations listed as 20-50 W, 35-75 W and 50-100 W. Application routes Public roadways and urban streets Pedestrian routes, parking areas and public squares Parks, promenades and commercial outdoor environments Configuration reference The following values are listed in the supplied model or family reference. Options are not all included as standard; confirm the selected configuration. Body: Die-Cast Aluminum and glass Electrical input: Voltage: 200-240 V AC,frequency: 50/60 Hz Color temperature options: 2200-6500 K Ambient temperature: -40 to +55 deg C Control options: DALI, 0-10V, Astro Dim, Step Dim IP Rating: IP66 IK Rating: IK09 Surge-protection options: 10kV, 25kV,10kA Accessory/interface options: Photocell, NEMA Socket, Zhaga Technical pack and project quotation To specify Mantis-L, request the model-specific dimensional drawing, selected optical data and electrical configuration. Share the application, mounting height and interface, quantity, control requirements and destination market with your enquiry. Final power, optics, finish, accessories and commercial terms are confirmed for the selected configuration. Certification documents, where required, should be requested for the exact product and market. A conventional road-lighting mounting option in the Mantis outdoor LED luminaire family.

View luminaire

Roads & Motorways

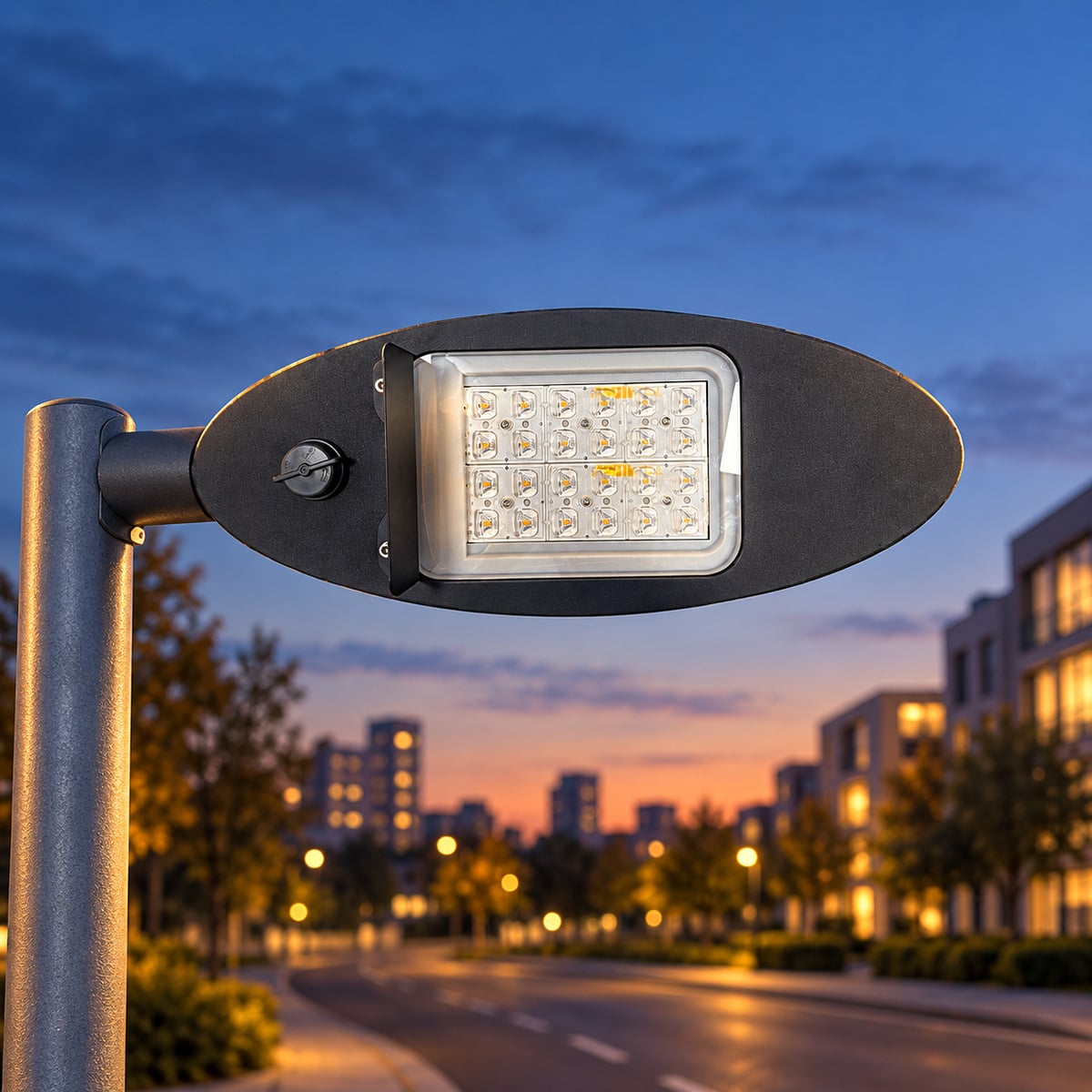

Sibelga-24

A Sibelga product reference for roadway enquiries Sibelga-24 presents a compact outdoor luminaire form within the Sibelga family. Its low-profile head provides a different visual reference from the larger decorative disc and post-top families. Sibelga is included in the road and motorway application route. Begin the technical enquiry with the installation location, mounting arrangement and intended lighting task, then request the Sibelga-24-specific material, optical and electrical documents for the final selection. Design and installation Compact, low-profile product form in the Sibelga family. A roadway application route for an initial model-selection discussion. Model-specific installation and optical documentation requested for selection. Exact materials, power and control interfaces confirmed for the selected configuration. Application routes Road and motorway environments listed for the Sibelga family Other settings after review of the exact model and installation brief Technical pack and project quotation To specify Sibelga-24, request the model-specific dimensional drawing, selected optical data and electrical configuration. Share the application, mounting height and interface, quantity, control requirements and destination market with your enquiry. Final power, optics, finish, accessories and commercial terms are confirmed for the selected configuration. Certification documents, where required, should be requested for the exact product and market. A Sibelga-family outdoor luminaire mapped to road and urban lighting applications.

View luminaire

Questions to carry forward

What should you compare before choosing a luminaire?

Selection guidance updated October 21, 2026

Review the product selection guide

How should products in this category be compared?

A category is a starting point for selection, not evidence that every listed luminaire fits the same project. Compare the exact model, mounting interface, optical distribution, electrical supply and control option against the site brief. Request the relevant datasheet and project-specific photometric files before approving a substitution.

What information is needed for a product review?

A product review starts with the selected model and the application it must serve. Identify the site layout, intended quantity and destination market, then separate confirmed requirements from open questions. Availability, test documentation, optional features and delivery timing need written confirmation for the actual configuration.

Site layout, mounting height and spacing, operating environment, and the lighting task.
Required light distribution, control behaviour, supply voltage, and any existing installation constraints.
Destination market, quantity, project schedule, and the documents required for approval.
